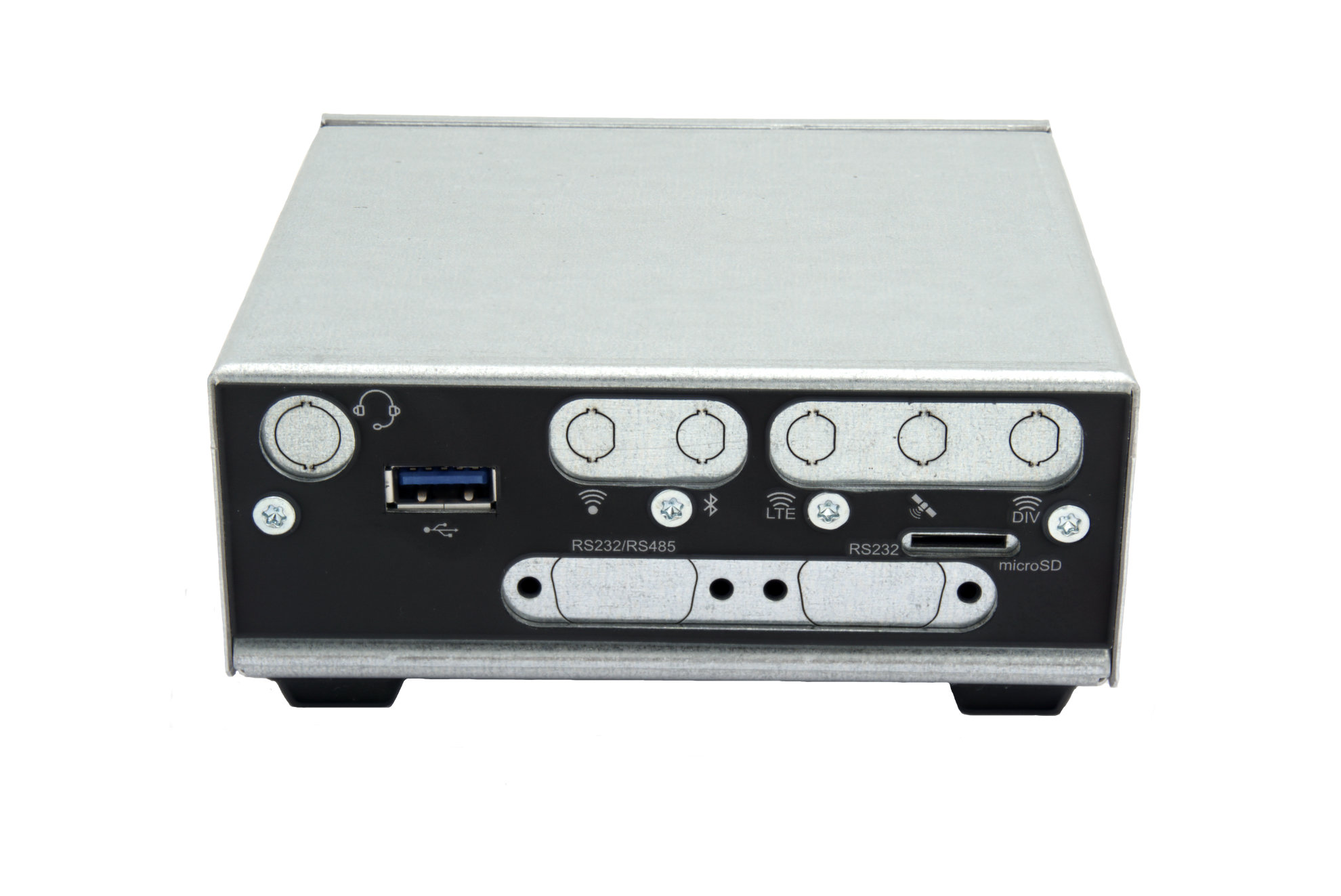

BoxPC - NUCR 1505G (x86)

The industrial BoxPC-NUCR-R1505G was designed according to the embedded NUC™ standard and is based on the latest AMD Ryzen™ Embedded R1000 platform.
It features excellent performance per watt and a very strong integrated graphics unit (Radeon™ Vega 3).

With its 2 cores / 4 threads, the BoxPC-NUCR is perfectly suited as a powerful IoT edge node that can take on intelligent tasks as required.

*Other areas of application include..:

• Aerospace & Defense
• Digital Casino Gaming
• Digital Signage & Retail
• Industrial Control & Automation
• IoT
• Media & Collaboration
• Medical Imaging
• Networking
• Storage
• Thin Client

Developed and manufactured in Germany - for industrial applications in harsh environments.

Due to a high CPU performance and a strong iGPU (integrated GPU) with low power consumption, the system is very well suited for industrial applications:

• Robotics, Mobile Systems (automotive grade power supply), Robotics in Retail
• authorities and organizations with security tasks + public safety and security applications
• Automation, Measurement, Machine control, IoT, Thin Clients
• POS, Vending machines, Interactive kiosk, Digital signage & Retail
• Advanced imaging applications, embedded media & collaboration, ...

The following CPUs are used with a TDP of 12W - 25W:

AMD Ryzen™ Embedded R1505G - 2 Cores / 4 Threads - 2.4 GHz to 3.3 GHz
AMD Radeon™ Vega 3 Graphics

With a large number of powerful interfaces in a very small space, the system is suitable for many applications.
These include mDP, USB 3.1 Gen1, M.2 SATA or NVMe, microSD.
The high-quality integrated automotive grade power supply simplifies the integration into mobile systems such as vehicles, robots, ....

With 2 x Mini-Displayport connectors, up to 4096 x 2160 @ 60 Hz can be displayed.

Modularly expandable:

Expand your system with various interface options:
The rear USB port is designed, among other things, to connect the EM-I/O interface modules. This allows the BoxPC-NUCR to be expanded with interfaces such as CAN, GPIO, relays, LTE/UMTS, etc..

More information can be found on our manufacturer's website: EM-I/O Modules
