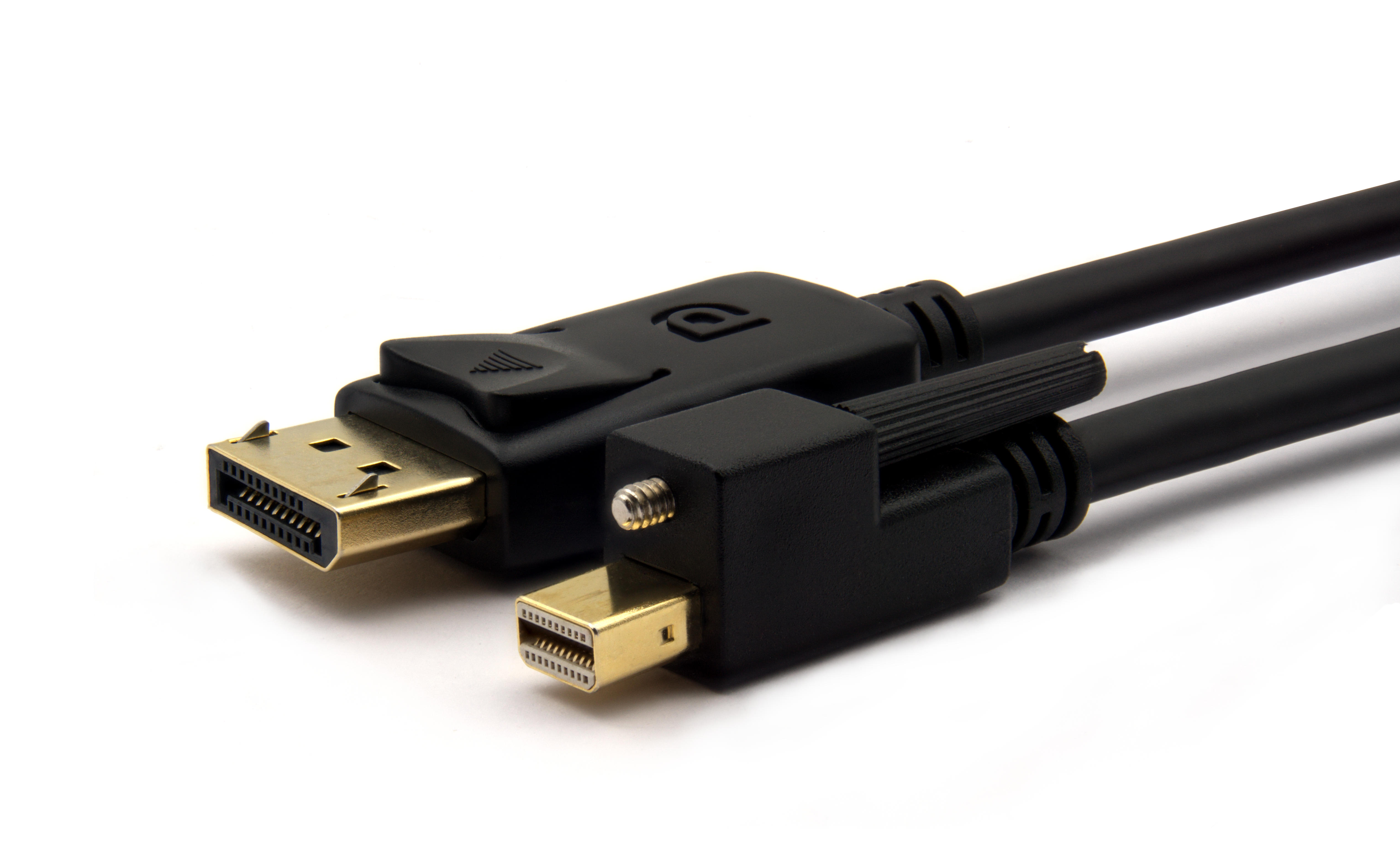

Display cable mDP-DP / 4k @ 60Hz with screw / W-NUDPDP1
Side 1: mini DisplayPort with screw locking
Page 2: DisplayPort
L = 2000mm
With this display cable you can connect a DisplayPort monitor via a mini-Displayport interface of your EM PRO mini.
The triple-shielded cable supports a resolution up to Ultra HD (4K @ 60 Hz) and is backwards compatible to Full-HD 1080p.
The screw of the mini DisplayPort connector ensures a secure connection and prevents the cable from being unintentionally pulled out.
Further information -> See technical data
• Connectors:
1 x mini DisplayPort male with screw >
1 x DisplayPort male
• Input = mini DisplayPort; Output = DisplayPort
• Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
• DisplayPort 1.2 specification
• Pin 20 not connected
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Contacts gold-plated
• 2 x ferrite core
• Transmission of audio and video signals
• Data transfer rate up to 21.6 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Colour: black
• Length incl. connectors: ca. 2 m
