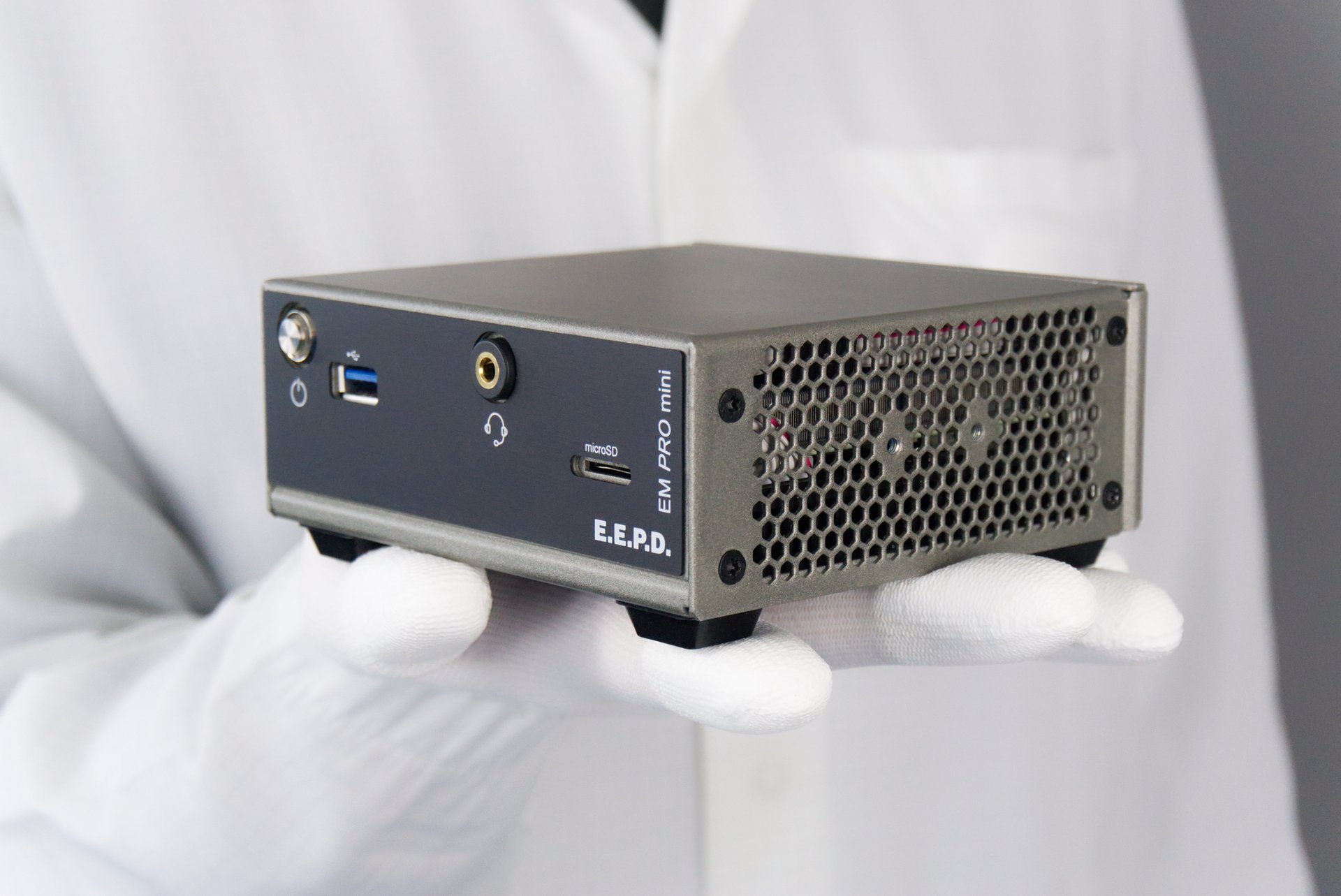

EM PRO mini® - AMD Ryzen™ R1102G / Fanless / Silent
EM PRO mini®
EM PRO mini®
2 x mini display port (mDP) 3 x USB 3.1 Gen2 M.2 SSD microSD. 2 Mini-Displayport connectors allow to display up to 4096 x 2160 @ 60 Hz
dimensions approx. 117 x 51 x 115 mm
dimensions approx. 117 x 51 x 115 mm
Mobile Preview: EM PRO mini®
Mobile Preview: EM PRO mini®
Mobile Preview: 2 x mini display port (mDP) 3 x USB 3.1 Gen2 M.2 SSD microSD. 2 Mini-Displayport connectors allow to display up to 4096 x 2160 @ 60 Hz
Mobile Preview: dimensions approx. 117 x 51 x 115 mm
Mobile Preview: dimensions approx. 117 x 51 x 115 mm
TOP

EM PRO mini® - AMD Ryzen™ R1102G / Fanless / Silent

Product No.:
EPSNRCA2
1 Week 1 Week  (abroad may vary)
Stock:
10 pieces
Please log in to purchase products

Add to wish list
Description

EM PRO mini R1102G / EPSNRCA2
Efficient and fanless & silent
eNUC-BoxPC with AMD Ryzen™R1102G

The EM PRO mini R1102G is derived from the industrial BoxPC-NUCR.

Like the BoxPC-NUCV it is also designed in the embedded NUC™ standard and is based on the modern AMD Ryzen™ Embedded R1000 platform.
This platform is characterized by excellent efficiency and a powerful integrated graphics unit (Vega 3).
With a TDP of only 6W (variant R1102G) the EM PRO mini R1102G is an efficient, energy-saving and fanless communication unit for commercial applications as well as for secure and reliable corporate communication.

The EM PRO mini R1102G is particularly suitable for the following applications:
  •     Thin Client / Lean Client
  •     network monitoring
  •     Dashboard display in production (production planning)
  •     Production data acquisition / production data acquisition / BDE terminal / process visualization
  •     Building Management System / Building Automation / Computer-Aided Facility Management (CAFM)
  •     Time recording systems / personnel information system
  •     Digital Signage
  •     POS / Cash register systems
With a large number of powerful interfaces in a very small space (dimensions approx. 117 x 51 x 115 mm), the system is suitable for many applications.
These include, among others:
  •     2 x mini display port (mDP)
  •     3 x USB 3.1 Gen2
  •     M.2 SSD
  •     microSD.
2 Mini-Displayport connectors allow to display up to 4096 x 2160 @ 60 Hz each (hardware encode/decode for R1102G up to 1080p).
Technical Specifications
  • CPU: AMD Ryzen™ Embedded R1102G with Radeon™ Vega 3 graphics
  • TDP 6W / 2C/2T / 1.2-2.6 GHz
  • Fanless / passively cooled
  • Max. 16 GB single channel DDR4 memory (only applies to variant R1102G)
  • Gigabit Ethernet: 2x Intel I225 with IEEE1588 with each max 2.5 GBit/s
  • fTPM - AMD firmware Trusted Platform Module | TPM 2.0 Support (Infineon SLB 9670)
    SSD (optional): M.2 SATA or up to 2 NVMe / 64GB-512GB
  • SD card: 1x MicroSD socket
  • 1 Dual USB 3.1 Gen2 (10Gb/s, limited by fuse to: 1500mA each)
  • 1 USB 3.1 Gen2 (10Gb/s, limited to: 1500mA each)
  • Serial Ports: 2x RS-232
  • DP connector: 2x Mini-DP++ connectors, up to 4096 x 2160 @ 60 Hz
  • Hardware Video Encoding / Decoding - up to 1080p
  • Sound: 3.5 mm jack plug / microphone input / headphone output
  • Condition monitoring and management: Speed controlled fan (PWM + tacho) and hardware monitoring
  • Other: Operation and status LEDs
  • Power supply: Min. 8 V to max. 32 V Power supply range / automotive grade
  • Max. Operating temperature range commercial at 0°C to + 50°C; others on request
  • Max. Storage temperature range from -40°C to +85°C
  • Max. relative humidity: 95% @ 40°C, non-condensing
  • Housing: Robust metal housing
  • Mounting: Freestanding or VESA
  • Dimensions: Approx. 117 mm x 51 mm x 115 mm
  • Weight: approx. 700g + options
  • Conformity: CE, ROHS, REACH
  • Operating system support (license is optional): Microsoft® Windows® 10 / 10 IoT, Linux Ubuntu 22.04 LTS
  • Design, production and support "Made in Germany"
