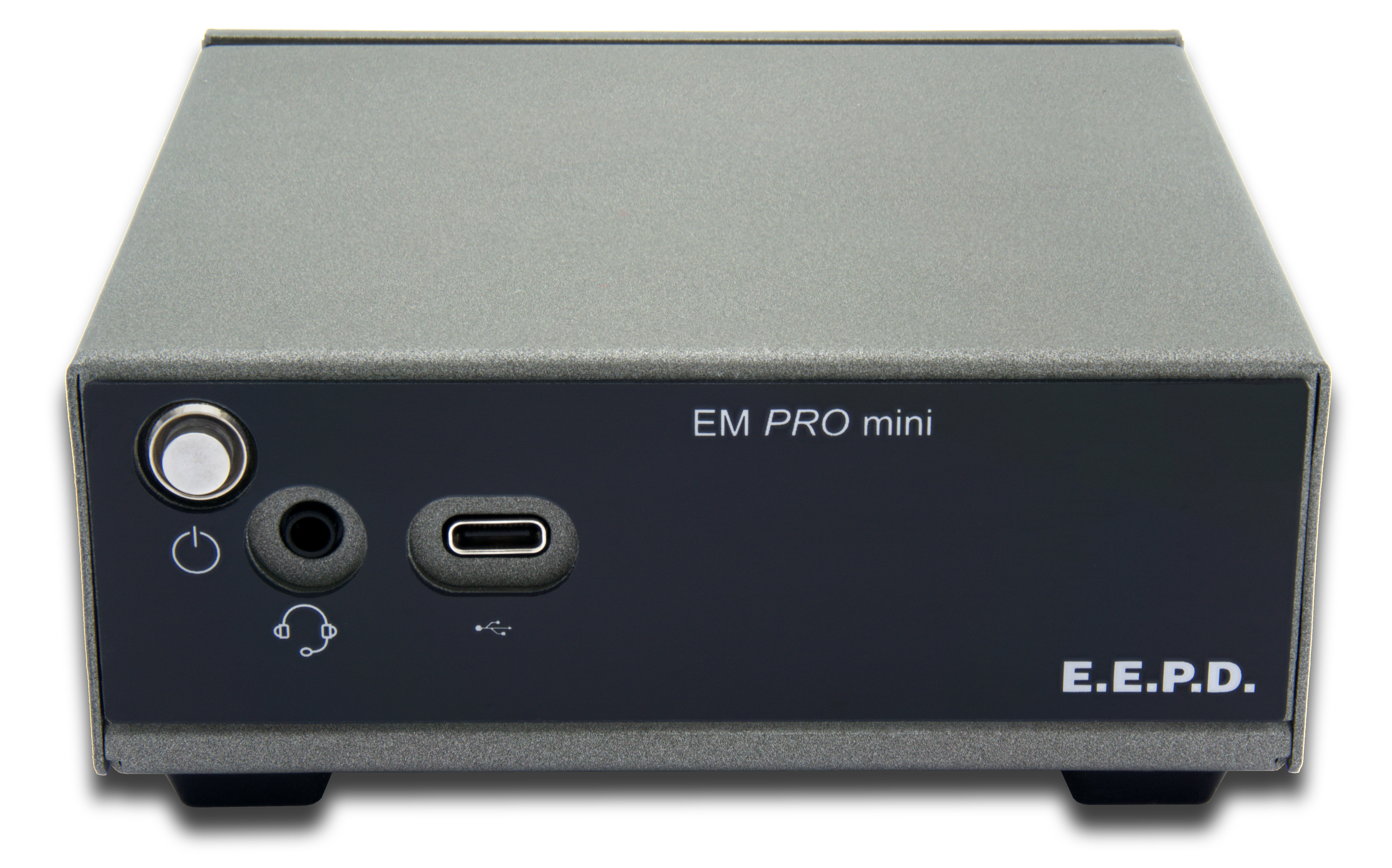

EM PRO mini® - AMD Ryzen™ V2516 / EPSNEAA4

Mobile Preview: EM PRO mini PC AMD Ryzen embedded V2516 Office

EM PRO mini® - AMD Ryzen™ V2516 / EPSNEAA4

Product No.:: EPSNEAA4
Shipping time:: ca. 3-5 days (abroad may vary)
Stock:: pieces

Memory :

SSD M.2 :

SSD M2. PCIe:

Operating System:

Please log in to purchase products

Description

EM PRO mini V2516 / EPSNEAA4
Efficient and performant - the workhorse 2.0
Professional IT eNUC BoxPC with AMD Ryzen™ embedded V2516 CPU

The EM PRO mini V2516, developed in Germany, is designed in the embedded NUC™ standard and is based on the modern AMD Ryzen™ Embedded V2000 platform.
With the "Zen 2" x86 core architecture and innovative 7nm process technology, it features excellent energy efficiency and a powerful and optimized integrated graphics unit (Radeon™).

With a TDP of 10-25W, the EM PRO mini V2516 is an efficient and high-performance communication unit for commercial applications, as well as for secure and reliable enterprise communications.
6 cores and 12 threads (2.1 - 3.95 GHz clock speed) provide strong multi-core performance and the powerful integrated graphics unit (iGPU Radeon™ Graphics) allows smooth multitasking under both Windows® and Linux.

The EM PRO mini V2516 is particularly suitable for the following areas of application, among others:

Portable Workstation for Office / Home Office
Workstation / Desktop Computer / Media Design PC / Creator PC
Small servers for companies, schools, educational institutions, authorities
PC systems in manufacturing and quality assurance areas (24/7 capable)
IoT Edge device / node
Mini server
Network monitoring
Dashboard display in manufacturing (production planning)
Production data acquisition / shop floor data collection / PDA terminal / process visualisation
Building management systems / building automation / computer-aided facility management (CAFM)
Time recording systems / personnel information system
Digital signage
PC for retail and specialised trade (e.g. for cash register system, service point, POS, etc.)
Compact computer for treatment rooms in doctors' surgeries and hospitals
Slim all-rounder as desktop computer and notebook replacement in the home office (optional VESA mounting available)

With a large number of powerful interfaces in a very small space (dimensions approx. 117 x 51 x 115 mm /flatter than 1U without feet), the system is suitable for many applications.
These include:

2 x Mini Displayport (mDP)
3 x USB 3.2 Gen2 (10Gb/s)
M.2 SSD
microSD
2 mini displayport connectors allow to display up to 4096 x 2160 @ 60 Hz each.

Technical Specifications

CPU: AMD Ryzen™ Embedded V2516 with Radeon™ graphics. / EPSNEAA4
TDP 10-25W / 6C/12T / 2.1 - 3.95 GHz clock frequency
Actively cooled
Max. 2x 32 GB Dual Channel DDR4 memory with support for ECC-RAM modules
2 x 2.5 Gigabit Ethernet:: 2x Intel I225 with IEEE1588
SSD (optional): M.2 SATA or up to 2 NVMe / 64GB-512GB
1 Dual USB 3.2 Gen2 (10Gb/s, limited to: 1500mA each)
1 USB-C 3.2 Gen2 (10Gb/s, limited to: 3A) with USB-C Alt Mode (Displayport via USB-C)
Serial ports: 2x RS-232
DP connector: 2x Mini-DP++ connectors, up to 4096 x 2160 @ 60 Hz
Sound: 3.5 mm jack / microphone input / headphone output
Status monitoring and management: speed controlled fan (PWM + tacho) and hardware monitoring
Other: operation and status LEDs
Power supply: Min. 10.8V to max. 26.4V Power supply range
Max. Operating temperature range commercial at 0°C to + 50°C; others on request
Max. Storage temperature range from -40°C to +85°C
Max. rel. humidity: 95% @ 40°C, non-condensing
Housing: Rugged metal housing
Mounting: Free standing or VESA
Dimensions: Approx. 117 mm x 51 mm x 115 mm
Weight: approx. 700g + options
Compliance: CE, ROHS, REACH
Operating system support (license is optional): Microsoft® Windows® 11 / 11 IoT, Linux Ubuntu 22.04 LTS
Design, production and support "Made in Germany"

Documents

Datasheet (1021.36 KB)

This product is compatible with (for example):

Power-cable-4pin-2,5m

4-pin DC supply cable / W-NUCDC2
Side 1: 4-pin Molex MicroFit3.0 - Suitable for products from the NUCV, NUCR, NUCD, NUCT series
Side 2: Open End
L = 2500mm

Please log in to purchase products

WLAN-Stick-802.11ac

WLAN / WIFI - USB adapter / WLANEDIM1
AC1200 dual-band MU-MIMO USB adapter
802.11ac WiFi, 11ac MU-MIMO
Up to 300 Mbit / s (2.4GHz) and 867 Mbit / s (5GHz)
Compact size: 7.1 (H) x 14.9 (W) x 20 (D) mm

Please log in to purchase products

VESA-Mounting

The VESA-Mount is a high-quality and stable VESA-MIS-D interface, which has a square hole pattern of 75x75 and 100x100 mm and was specially developed for the mini PC EM PRO mini and the BoxPC-NUCV.
This allows the mini PC to be mounted on the back of a compatible monitor.

Please log in to purchase products

Display cable mDP - HDMI, 4k @30Hz

Active Display cable mDP-HDMI / 4k @ 30Hz with screw / W-NUDPHD1
Side 1: mini DisplayPort
Side 2: HDMI
L = 2000mm

Please log in to purchase products

Display Cable mDP - Display Port, 4k @60Hz...

Display cable mDP-DP / 4k @ 60Hz with screw / W-NUDPDP1
Side 1: mini DisplayPort with screw locking
Page 2: DisplayPort
L = 2000mm

Please log in to purchase products

DIN-rail-holder-Base-plate (aluminum)

The DIN rail bracket KICR35M40 is attached to the bottom of the EM PRO mini and enables the mini PC to be mounted on a DIN rail (hat rail).
Suitable for: TS35 top hat rail, EM PRO mini, Tough-Box-Modular, BoxPC-NUCV

Please log in to purchase products

DIN-rail-holder-side (plastic)

The DIN rail bracket KIANDCR1 is attached to the side of the EM PRO mini and enables the mini PC to be mounted on a DIN rail (hat rail).
Suitable for: TS35 top hat rail, EM PRO mini, BoxPC-NUCV

Please log in to purchase products

90W - Power Supply - 2pol - 5.5x2.5

AC/DC desktop power supply, 90W, 19V, 4.74A
incl. 1.2m long power cord
Suitable for EM PRO mini V2516 / V2718 and SBC PROFIVE® NUCE - V2516 / V2718

Please log in to purchase products
