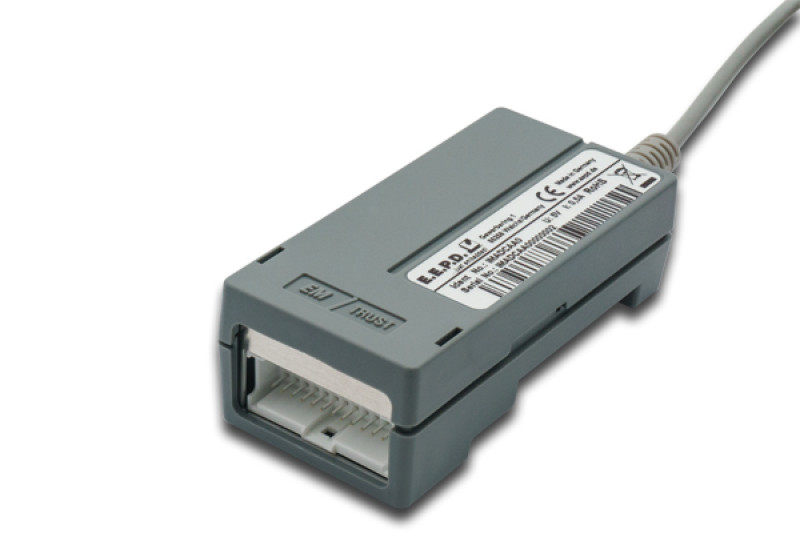

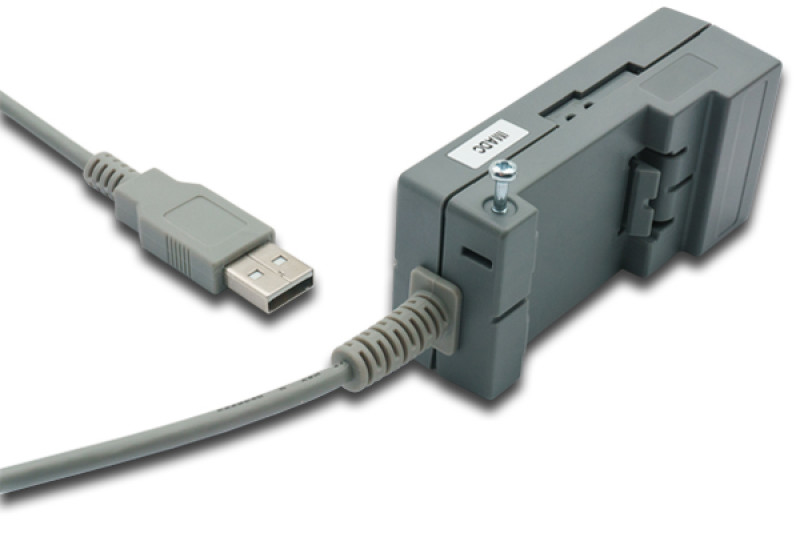

EM® Modul IMADC - Analog to Digital Converter with cable
EM® Modul IMADC - Analog to Digital Converter with cable
Preview: EM® Modul IMADC - Analog to Digital Converter with cable
Preview: EM® Modul IMADC - Analog to Digital Converter with cable
EM® Modul IMADC - Analog to Digital Converter with cable
EM® Modul IMADC - Analog to Digital Converter with cable
EM® Modul IMADC - Analog to Digital Converter with cable
Mobile Preview: EM® Modul IMADC - Analog to Digital Converter with cable
Mobile Preview: EM® Modul IMADC - Analog to Digital Converter with cable
NEW

EM® Modul IMADC - Analog to Digital Converter with cable

Product No.:
IMADCAC0
ca. 3-5 days ca. 3-5 days  (abroad may vary)
Please log in to purchase products

Add to wish list
Description

EM® Modul IMADC - Analog to Digital Converter

The EM® MODULE IMADC is the perfect analog to digital and digital to analog USB module.
The 12 Bit analog inputs and 10 Bit analog outputs, conforming to DIN EN 61131-2.

Like all EM I/O modules it fits on the module rail mounting of the products TB-M and TB-H and can be fixed on this with a screw. It is with hardware of E.E.P.D. / EMTrust as well as with most x86-and ARM third-party hardware compatibly. In addition to the assembly in the module mounting it can be fixed to a hat rail. A variation with 80-cm-long USB cable (type A plug) is also available especially for it.

Accessories: 26-pin connection cable W-IMGPIO1


Design, production and support "Made in Germany"

Specifications

  • Analog inputs: 8x 12 Bit; 4 to 20 (mA) or 0 to 5 / 0 to 10 / -10 to 10 (V)

  • Analog outputs: 2x 10 Bit; 0 to 10 / -10 to 10 (V)

  • Analog connector: 26 pin Molex MicroclaspTM

  • USB client port: 1 USB 2.0 / 1.1 Type A Cable solution (optional)

  • OS support: Visual COM port configuration Microsoft® Windows® 7 Microsoft® Windows® 10 Microsoft® Windows® 10 IoT Core Linux Ubuntu 16.04.1 LTS

  • Power supply: USB VCC (+5 V supply, current limited to 500 mA)

  • Housing: ABS-PC

  • Dimension: 93 mm x 38,5 mm x 26,6 mm

  • Weight: Approximately 40 grams

  • Mounting: EMTrust TB-M and TB-H module mounting, hat rail mounting

  • Cooling Designed for fanless operation

  • Conformity: CE, ROHS, REACH

  • Max. operating temparature: -40°C to +85°C ambient

  • Max. storage temparature: -40°C to +85°C ambient

  • Max. rel. humidity: 95 % @ 40°C, non-condensing

  • Design, Produktion and Support “Made in Germany"

This product is compatible with (for example):

W-IMGPIO1 - 26pin 4,-Cable for USB-modules IMADC und IMGPI
W-IMGPIO1 - 26pin 4,-Cable for USB-modules...

W-IMGPIO1 - 26pin Connection Cable for IMADC and IMGPI USB modules

Side 1: Molex Microclasp, 26pin
Side 2: open end
Length: 4 m, Wire: 24AWG
