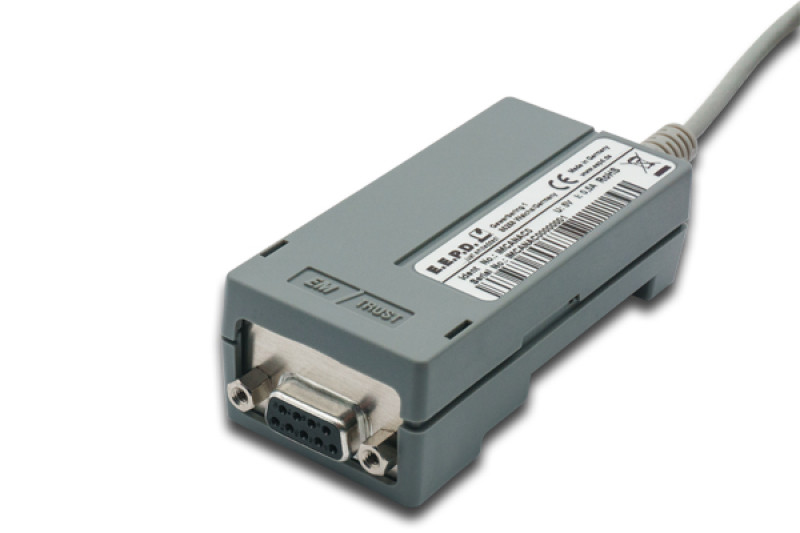

EM® Modul IMCAN - CAN USB-Adapter with optocoupler with cable

Product No.:
IMCANBC0
ca. 3-5 days ca. 3-5 days  (abroad may vary)
Please log in to purchase products

Add to wish list
Description

EM® Modul IMCAN - CAN USB-Adapter

The EM module MCAN is the perfect CAN module solution. MCAN enables the control of different devices and sensor units and thus serves for network security. The module is equipped with a USB-to-CAN adapter. Further details: CAN module version 2.0A and 2.0B for serial field bus operations, DSUB-9 connector (male), USB 2.0 / 1.1 capable. The possible bit rate is 20 kBit/s to 1 MBit/s.

The CAN module can also be ordered with galvanic isolation (500V). Select the option with optical coupler - with/without cable.

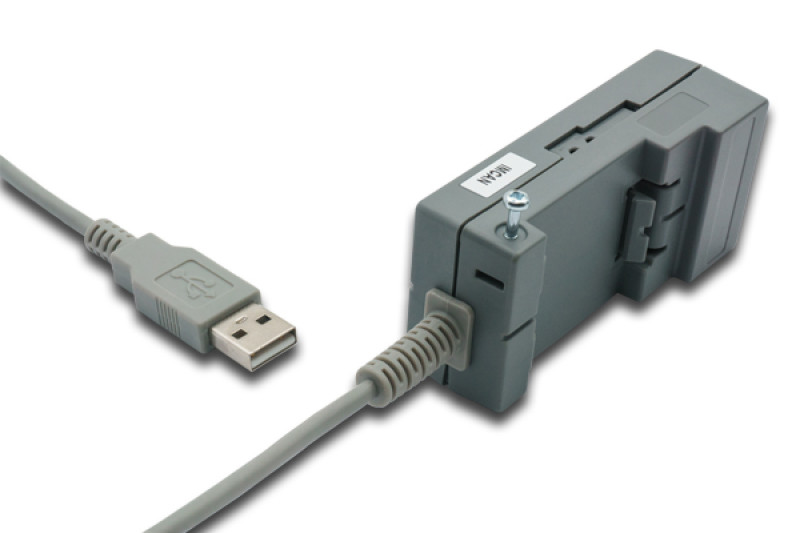

Like all EM-I/O modules, they fit on the horizontal rail carrier of the products TB-M and TB-H and can be fixed on it with a screw. It is compatible with hardware from E.E.P.D. / EMTrust as well as with most x86 and ARM third-party hardware. In addition to mounting in the module rack, it can also be attached to a top hat rail. A special version with an 80cm long USB cable (type A plug) is available for this purpose.


​Design, production and support "Made in Germany"

Specifications

  • CAN: 9-pin female D-SUB connector / 2 CAN ports: Standard CAN (Version 2.0A) / Extended CAN (Version 2.0B)

  • Possible bitrate: 20 kBit/s up to 1 MBit/s
  • Transceiver: NXP TJA 1042TK
  • Driver support: SocketCAN CANopen®
  • Status LEDs: yes
  • Galvanic isolation: Optional (500 V)
  • USB client port: 1 USB 2.0 / 1.1 Type A
  • OS support: Linux Kernel 3.4 or later Microsoft® Windows® 7 Microsoft® Windows® 10 Microsoft® Windows® 10 IoT Core
  • Power supply: USB VCC (+5 V supply, current limited to 500 mA)
  • Housing: ABS-PC
  • Dimension: 93 mm x 38,5 mm x 26,6 mm
  • Weight: Approximately 40 grams
  • Mounting: EMTrust TB-M and TB-H module mounting, hat rail mounting
  • Cooling Designed for fanless operation
  • Conformity: CE, ROHS, REACH
  • Max. operating temparature: -40°C to +85°C ambient
  • Max. storage temparature: -40°C to +85°C ambient
  • Max. rel. humidity: 95 % @ 40°C, non-condensing
  • Design, Produktion and Support “Made in Germany"
For more information, please visit the home page for this product.
