EM® Modul IMGPI - GPIO USB Adapter with cable

Product No.:
IMGPIAC0
ca. 3-5 days ca. 3-5 days  (abroad may vary)
Please log in to purchase products

Add to wish list
Description

EM® Modul IMGPI - GPIO USB Adapter

The EM module MGPI is the optimal interface for free programmable inputs and outputs (GPIO / General Purpose Input / Output).

Advantages: Easy to program, API interface or direct control. Adjust your system easily and uncomplicated.
Features: 16 status LEDs, I/O syncronized or independently controlled / 2 analog inputs.with 500kHz / 10-bit
Mounting: EM modular rail bracket or DIN rail mounting

Like all EM I/O modules it fits on the module rail mounting of the products TB-M and

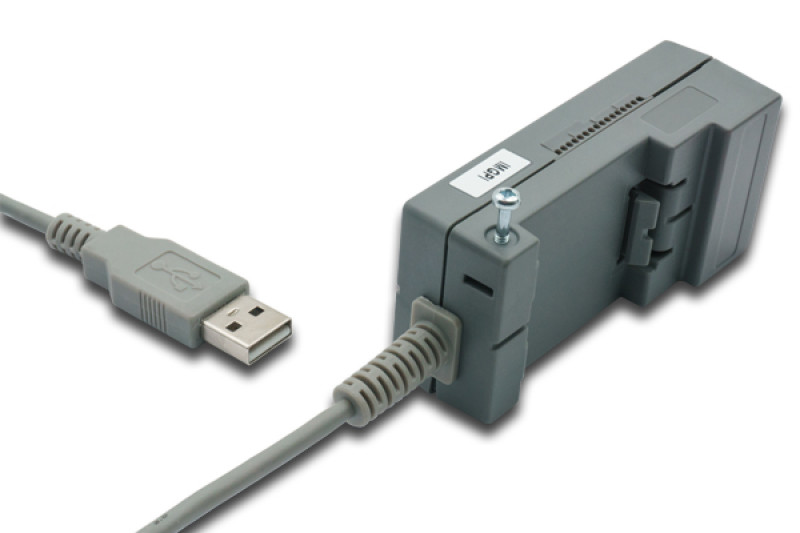

TB-H and can be fixed on this with a screw. It is with hardware of E.E.P.D. / EMTrust as well as with most x86-and ARM third-party hardware compatibly. In addition to the assembly in the module mounting it can be fixed to a hat rail. A variation with 80-cm-long USB cable (type A plug) is also available especially for it.

Accessories: 26-pin connection cable W-IMGPIO1


Design, production and support "Made in Germany"

Specifications

  • GPIO: 8 inputs and 8 outputs

  • Digital input: Max. 30 V / high impedance

  • Digital output: Max. 30 V / max. 1 A / OC

  • Analog input: 2 inputs max. Vin / 500 kHz / 10-Bit

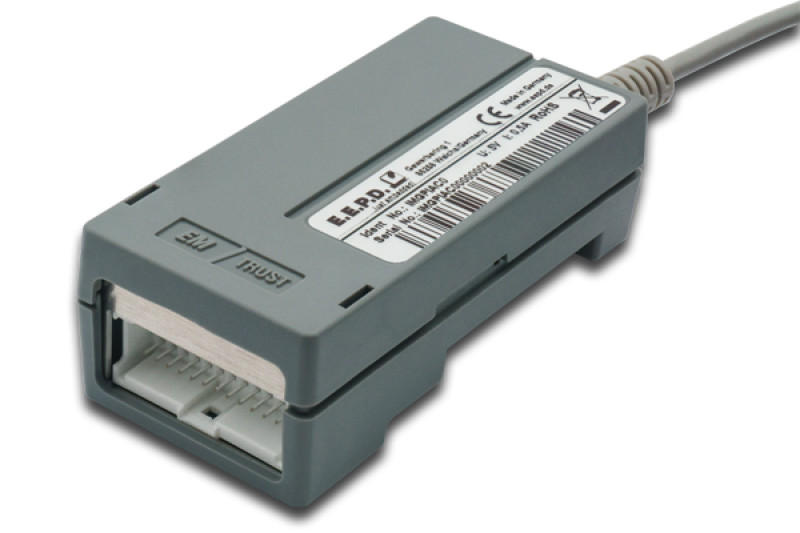

  • Connector: Molex 26 pin MicroClaspTM

  • USB client port: 1 USB 2.0 / 1.1 type A

  • OS support: Linux Kernel 3.4 or later Android Microsoft® Windows® 7 Microsoft® Windows® 8 Microsoft® Windows® 10

  • Power supply: USB VCC (+5 V supply, current limited to 500 mA)

  • Housing: ABS-PC

  • Dimension: 93 mm x 38,5 mm x 26,6 mm

  • Weight: Approximately 40 grams

  • Mounting: EMTrust TB-M and TB-H module mounting, hat rail mounting

  • Cooling Designed for fanless operation

  • Conformity: CE, ROHS, REACH

  • Max. operating temp.: -40°C to +85°C ambient

  • Max. storage temp.: -40°C to +85°C ambient

  • Max. rel. humidity: 95 % @ 40°C, non-condensing

  • Design, Produktion and Support “Made in Germany"

This product is compatible with (for example):

W-IMGPIO1 - 26pin 4,-Cable for USB-modules IMADC und IMGPI
W-IMGPIO1 - 26pin 4,-Cable for USB-modules...

W-IMGPIO1 - 26pin Connection Cable for IMADC and IMGPI USB modules

Side 1: Molex Microclasp, 26pin
Side 2: open end
Length: 4 m, Wire: 24AWG
