IMREL - Relay USB-Module with cable

Product No.:
IMRELAC0
ca. 3-5 days ca. 3-5 days  (abroad may vary)
Please log in to purchase products

Add to wish list
Description

IMREL - Relay USB-Module

The EM relay module MREL is the perfect USB solution for high-performance switching applications.

The 4 relays are designed to switch a maximum current of 5A (AC) (at 60V). 4 green LEDs indicate the switching status and the compact dimensions allow installation in the smallest space.

Like all EM I/O modules it fits on the module rail mounting of the products TB-M and

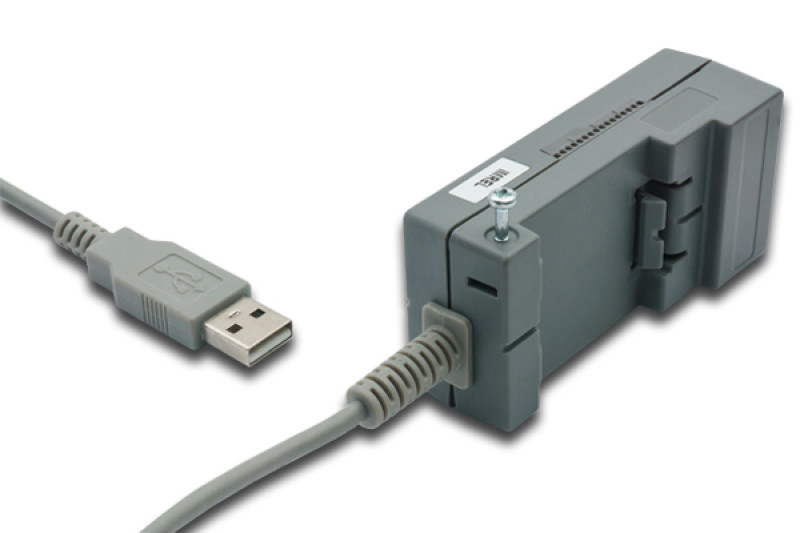

TB-H and can be fixed on this with a screw. It is with hardware of E.E.P.D. / EMTrust as well as with most x86-and ARM third-party hardware compatibly. In addition to the assembly in the module mounting it can be fixed to a hat rail. A variation with 80-cm-long USB cable (type A plug) is also available especially for it.

Accessories: W-IMREL1 - 12pin Cable for MREL USB-module


Design, production and support "Made in Germany"

Specifications
  • Relays: 4 change over Finder relays
  • Relay power: Max. 60 V / max. 5 A (AC)
  • LED: 4 green LEDs Connector Molex 12 pin Micro-FitTM
  • USB client port: 1 USB 2.0 / 1.1 type A
  • Cable solution: (optional) OS support Linux Kernel 3.4 or later Android Microsoft® Windows® 7 Microsoft® Windows® 10 Microsoft® Windows® 10 IoT Core
  • Power supply: USB VCC (+5V supply, current limited to 500 mA)
  • Housing: ABS-PC
  • Dimension: 93 mm x 38,5 mm x 26,6 mm
  • Weight: Approximately 40 grams
  • Mounting: EMTrust TB-M and TB-H module mounting, hat rail mounting
  • Cooling Designed for fanless operation
  • Conformity: CE, ROHS, REACH
  • Max. operating temparature: -40°C to +85°C ambient
  • Max. storage tempature: -40°C to +85°C ambient
  • Max. rel. humidity: 95 % @ 40°C, non-condensing
  • Design, Produktion and Support “Made in Germany"
LInks
Downloads: https://www.eepd.de/en/em-io-modules/em-usb-module-mrel/

This product is compatible with (for example):

W-IMREL1 - 12pin Cable for MREL USB-module
W-IMREL1 - 12pin Cable for MREL USB-module...
W-IMREL1 - 12pin Cable for MREL USB-module
12 Pin Kabel für IM-REL Modul
Anschlusskabel an Relais-Modul
Length: 2m, Cross selection: 20AWG
