Tough-Box-Modular / TB-M - Modular x86 Industrial BoxPC - Made in Germany
The robust EM

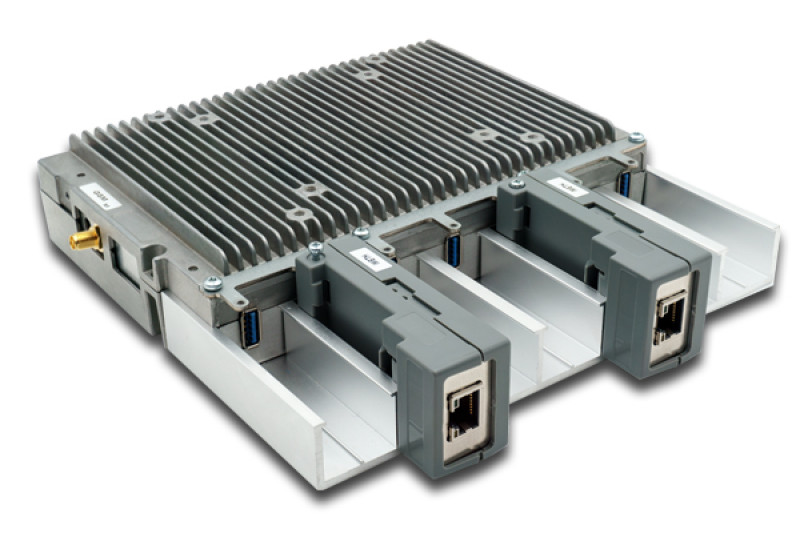

Tough-Box-Modular TB-M is a fanless, modular Industrial-PC (24/7 IPC) and as a Plug&Play - system solution and amoung other things an alternative for CompactPCI-Systems.
Our TB-M is based on energy efficient Dual- and Quad-Core-Variants from AMDs Embedded G-Series SOC-CPU family with clock rates up to 1,5 GHz.
The interfaces of the system can be connected via up to 7 pcs. USB module slots.
The available USB interface modules can be found here: USB-I/O-Module
In a compact chassis, the base model of the modular system already offers following interfaces:
- Up to 6 x USB 3.0 + 4 x USB 2.0
- 3 Gigabit Ethernet ports
- 1 x MicroSD slot
- 1 x DVI-I monitor connector
- 7 x control / signal LED
- Microphone + Headphone jack (Audio OUT) / 3.5mm jack plug
- External antenna connection
- 3pin power supply connector (Phoenix) / 8V - 32V DC wide input range
The compact Box PC is characterized by high quality, reliability and long-term availability. Due to the fanless design, it is the ideal platform for demanding applications which require a completely silent and energy-saving operation.
