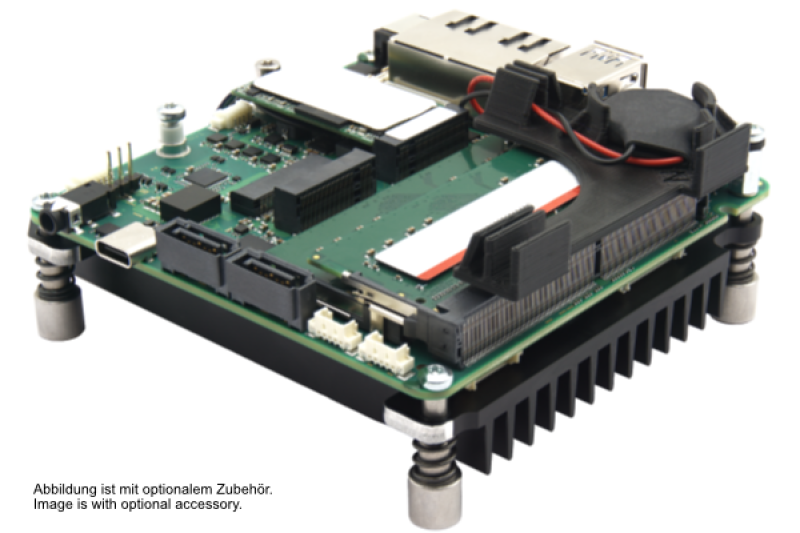

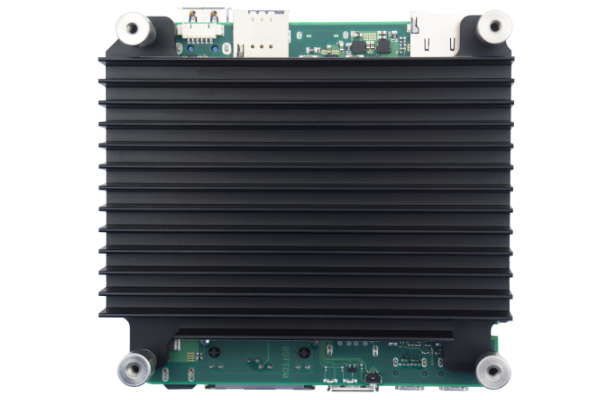

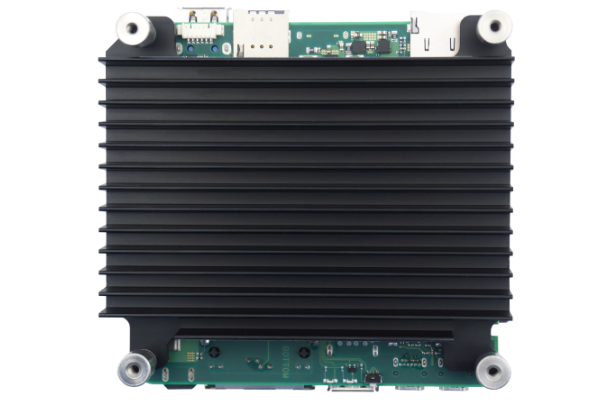

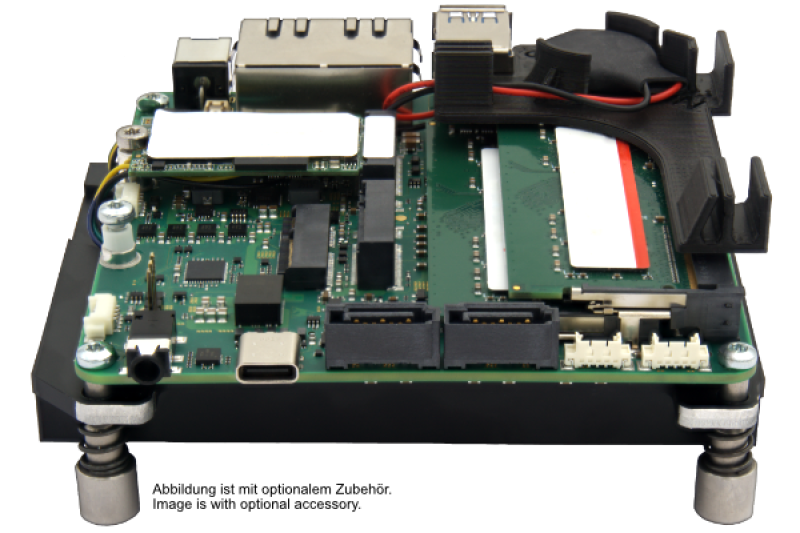

SBC PROFIVE® NUCE - V2516 / NUCEFCO3

The industrial single-board computer PROFIVE® NUCE-V2516, designed and manufactured in Germany, is based on the embedded NUC ™ standard and the AMD Ryzen ™ Embedded V2000 platform.
With the “Zen 2” x86 core architecture and innovative 7nm process technology, it is characterized by excellent energy efficiency and a strong and optimized integrated graphics unit (Radeon ™).

The ultra-compact board - only about 10 x 10 cm in size - is an extremely powerful industrial embedded board with up to 6 cores and 12 threads.

The high number of CPU cores and threads is particularly advantageous for parallel applications. The SBC is ideal for applications that require high CPU and / or GPU performance as well as security features like hardware TPM, for example

• AI systems
• Medical applications
• Machine learning
• Computer vision
• Robotics
• Micro-servers
• Mobile and ultra compact workstations
• Robust industrial automation systems
• IoT EDGE applications
• And much more.

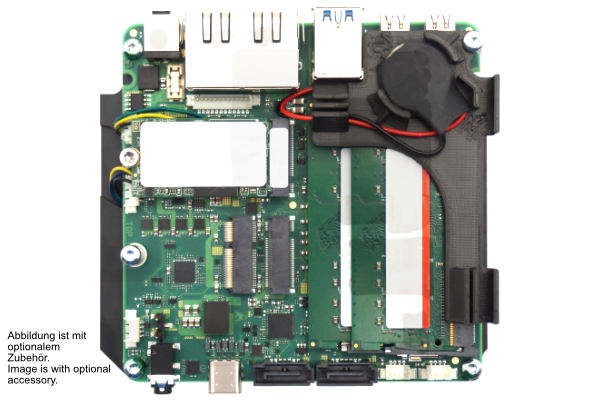

Key features of the PROFIVE® NUCE-V2516 include SO-DIMM sockets that support memory of up to 64 GBytes of DualChannel DDR4 RAM (including ECC RAM modules (Error Correction Code)).

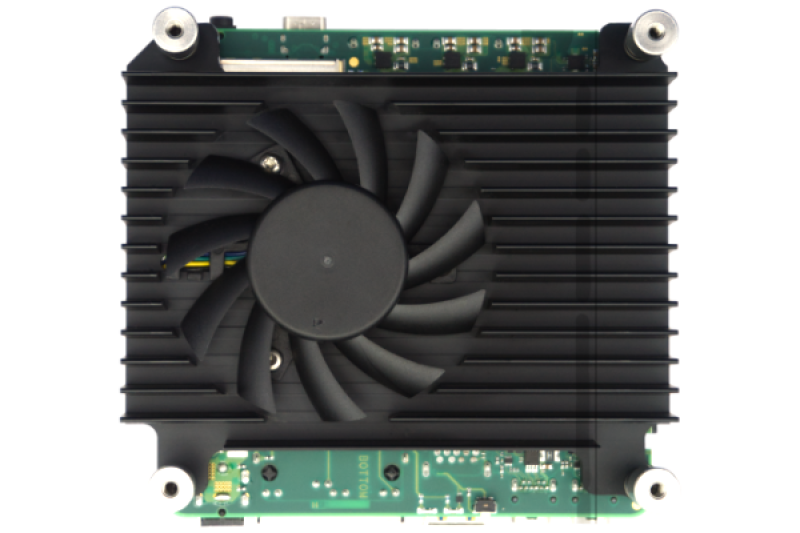

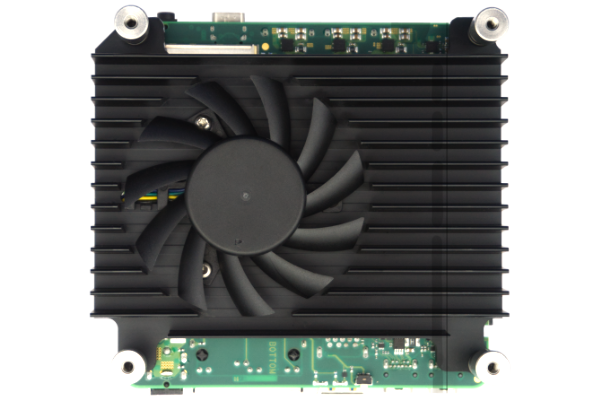

A wide-range input from 10.8 VDC to 26.4 VDC as well as numerous safety features allow for use in industrial environments. In addition to the AMD Firmware Trusted Platform Module and a TPM 2.0 chip (Infineon), these also include health monitoring and management with adjustable fan control, hardware monitoring and watchdog.

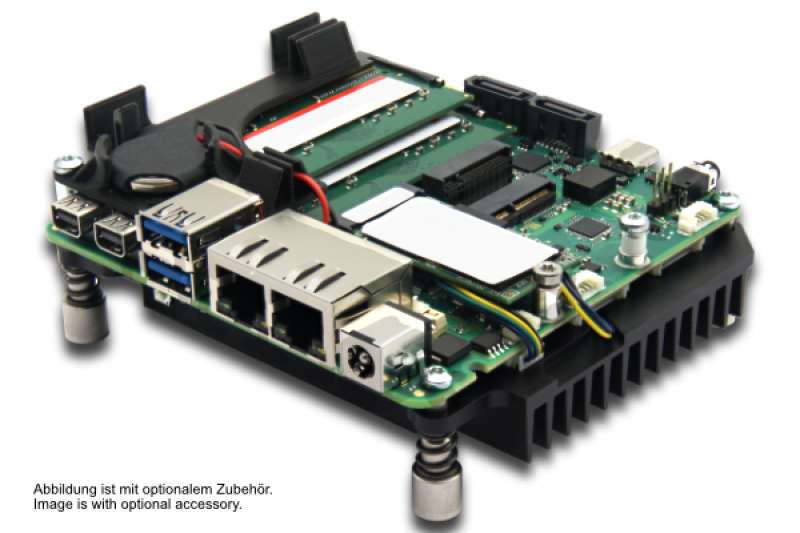

The two Intel® I225 Ethernet controllers with 2.5 Gigabit each are another highlight.

The following long-term available embedded CPU is used::
AMD Ryzen™ Embedded V2516 - 6 cores / 12 threads - 2.1 GHz to 3.95 GHz - cTDP: 10W to 25W
AMD Radeon™ Graphics - 6 CU / 1500 MHz
